TI公司的TCAN1051HGV-Q1是滿足ISO11898-2 (2016)高速CAN物理層標準的收發器,滿足汽車應用AEC Q100,數據速率高達5Mbps,I/O電壓范圍支持3.5V和5V MCU,HBM ESD 保護電壓±16 kV, IEC ESD保護電壓高達 ±15 kV,主要用在所有的CAN網絡(luò ),重型機械ISO11783應用,和汽車與交通.本文介紹了TCAN1051HGV-Q1主要特性,框圖和多種應用電路,以及TCAN10xx系列CAN評估模塊主要特性和電路圖.
This CAN transceiver family meets the ISO11898-2 (2016) High Speed CAN (Controller Area Network) physical layer standard. All devices are designed for use in CAN FD networks up to 2 Mbps (megabits per second). Devices with part numbers that include the "G" suffix are designed for data rates up to 5 Mbps, and versions with the "V" have a secondary power supply input for I/O level shifting the input pin thresholds and RXD output level. This family of devices comes with silent mode which is also commonly referred to as listen-only mode. Additionally, all devices include many protection features to enhance device and network robustness.
TCAN1051HGV-Q1主要特性:
AEC Q100: Qualified for Automotive Applications
Meets the Requirements of ISO11898-2 (2016)
‘Turbo’ CAN:
All devices support 2 Mbps CAN FD (Flexible Data Rate) and "G" options support 5 Mbps
Short and Symmetrical Propagation Delay Times and Fast Loop Times for Enhanced Timing Margin
Higher Data Rates in Loaded CAN Networks
I/O Voltage Range Supports 3.3 V and 5 V MCUs
Ideal Passive Behavior When Unpowered
Bus and Logic Terminals are High Impedance (no load)
Power Up/Down With Glitch Free Operation On Bus and RXD Output
Protection Features
HBM ESD Protection: ±16 kV
IEC ESD Protection up to ±15 kV
Bus Fault Protection: ±58 V (non-H variants) and ±70 V (H variants)
Undervoltage Protection on VCC and VIO (V variants only) Supply Terminals
Driver Dominant Time Out (TXD DTO) - Data rates down to 10 kbps
Thermal Shutdown Protection (TSD)
Receiver Common Mode Input Voltage: ±30 V
Typical Loop Delay: 110 ns
Junction Temperatures from –55℃ to 150℃
TCAN1051HGV-Q1應用:
All devices support highly loaded CAN networks
Heavy Machinery ISO11783 Applications
Automotive and Transportation
圖1.TCAN1051HGV-Q1框圖

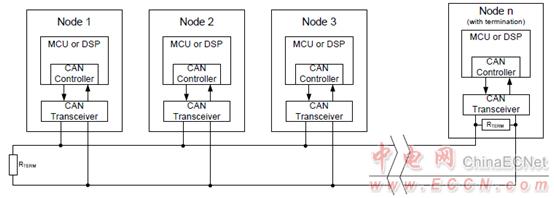

圖2.TCAN1051HGV-Q1典型CAN總線應用框圖

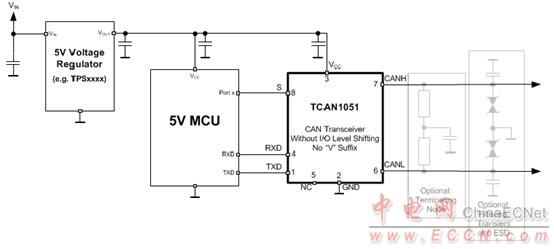

圖3.TCAN1051HGV-Q1采用5V CAN控制器的典型CAN總線應用框圖

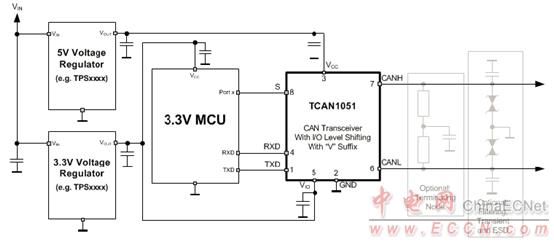

圖4.TCAN1051HGV-Q1采用3.3V CAN控制器的典型CAN總線應用框圖
TCAN10xx系列CAN評估模塊
This user guide details the TCAN10xx CAN (Controller Area Network) EVM transceiver operation. TheTCAN10xx CAN EVM is configurable for use with all TI CAN transceiver families: TCAN10xx, TCAN33x,SN65HVD23x, SN65HVD25x, SN65HVD10x0, and SN65HVDA54x by replacing the transceiver andsetting jumpers on the EVM as outlined in this document. This user guide explains the EVM configurationsfor basic CAN evaluation, various load and termination settings.
The EVM comes with the TCAN1042D CAN transceiver factory installed. The CAN EVM may be reconfigured by a user for use with all TI CAN transceiver families: TCAN33x, SN65HVD23x, SN65HVD25x, SN65HVD10x0 and SN65HVDA54x by replacing the transceiver and setting jumpers on the EVM. The EVM has configurations for basic CAN evaluation, various load and termination settings necessary to evaluate CAN transceiver performance.
TCAN10xx系列CAN評估模塊主要特性:
Meets the requirements of ISO11898-2
I/O Voltage Range Support 3.3V and 5V MCUs
Ideal passive behavior when unpowered
Bus pins are high impedance (no load to operating bus)
Logic pins are high impedance
Power up/down with glitch free operation on bus
Protection Features
ESD protection of bus pins
HBM ESD ±25kV
IEC ESD ±12kV
Bus Fault Protection ±14V
Under voltage protection on supply pins
TXD (Driver) dominant time out (DTO)
RXD (Receiver) dominant time out (DTO)
Thermal shutdown protection
Characterized for -40℃ to 125℃ operation

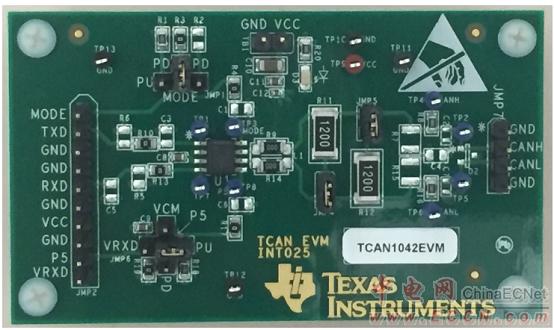

圖5.TCAN10xx系列CAN評估模塊外形圖

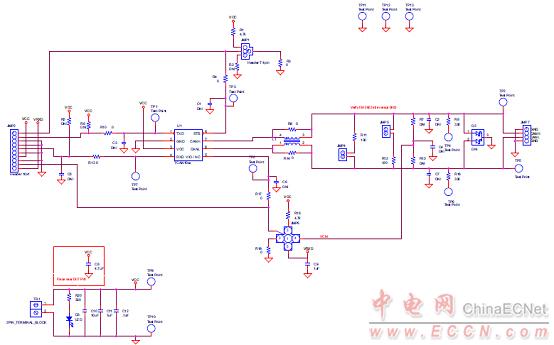

圖6.TCAN10xx系列CAN評估模塊電路圖
