| TPA3221 100W(立體聲)200W(單路)HD音頻D類放大器解決方案 |
|
|
| 文章來源：永阜康科技 更新時間：2018/11/23 10:03:00 |
在線咨詢： |
| |
TI公司的TPA3221是大功率D類放大器,具有帶寬高達100kHz的閉環負反饋,提供音頻帶的低失真和極好的音頻質量,器件工作在A(yíng)D或低空載電流HEAD(高效AD模式)調制,能對4歐姆負載提供2x105W或對2歐姆負載提供1x208W功率.器件具有單端或差分模擬輸入接口,四種可選擇增益:18 dB, 24 dB, 30 dB和34 dB,主要用在無線和加電揚聲器,條形音箱,超低音音箱,書架立體聲系統和專業與公共地址（PA）揚聲器.本文介紹了TPA3221主要特性,框圖和系統框圖,以及TPA3221評估模塊主要特性,電路圖,材料清單和PCB設計圖.
TPA3221 is a high-power Class-D amplifier thatenables efficient operation at full-power, idle andstandby. The device features closed-loop feedbackwith a bandwidth up to 100 kHz, which provides lowdistortion across the audio band and deliversexcellent sound quality. The device operates witheither AD or low idle-current HEAD (High Efficient AD mode) modulation, and can drive up to 2 x 105 W into4-Ω load or 1 x 208 W into 2-Ω load.
The TPA3221 features a single-ended or differentialanalog-input interface that supports up to 2 VRMS withfour selectable gains: 18 dB, 24 dB, 30 dB and 34dB. The TPA3221 also achieves >90% efficiency, lowidle power (<0.25 W) and ultra-low standby power(<0.1 W). This is made possible through the use of70-mΩ MOSFETs, an optimized gate drive schemeand low-power operating modes. TPA3221 includes abuilt-in LDO for easy integration in single-powersupplysystems. To further simplify the design, thedevice integrates essential protection featuresincluding undervoltage, overvoltage, cycle-by-cyclecurrent limit, short circuit, clipping detection,overtemperature warning and shutdown, as well asDC speaker protection.
TPA3221主要特性:
• Wide 7-V to 30-V Supply Voltage Operation
• Stereo (2 x BTL) and Mono (1 x PBTL) Operation
• Output Power at 10% THD+N
– 105-W Stereo into 4 Ω in BTL Configuration
– 112-W Stereo into 3 Ω in BTL Configuration
– 208-W Mono into 2 Ω in PBTL Configuration
• Output Power at 1% THD+N
– 88-W Stereo into 4 Ω in BTL Configuration
– 100-W Stereo into 3 Ω in BTL Configuration
– 170-W Mono into 2 Ω in PBTL Configuration
• 5-V Gate Drive or Built-in LDO for Optional Single-Supply Operation
• Closed-Loop Feedback Design
– Signal Bandwidth up to 100 kHz for High-Frequency Content From HD Sources
– 0.02% THD+N at 1 W into 4 Ω
– 60-dB PSRR (BTL, No Input Signal)
– <75-μV Output Noise (A-Weighted)
– >108-dB SNR (A-Weighted)
– AD or HEAD Modulation Schemes
• Low-Power Operating Modes
– Standby Modes: Mute and < 1 mA Shutdown
– Low Idle-Current HEAD Modulation Scheme
– Single-Channel BTL Operation
• Multiple Input Options to Simplify Pre-Amp Design
– Differential or Single-Ended Analog Inputs
– Selectable Gains: 18 dB, 24 dB, 30 dB, 34 dB
• Integrated Protection: Undervoltage, Overvoltage,Cycle-by-cycle Current Limit, Short Circuit,Clipping Detection, Overtemperature Warning andShutdown, and DC Speaker Protection
• 90% Efficient Class-D Operation (4 Ω)
• Pin-Compatible Family of Devices with Voltageand Power-Level Options
TPA3221應用:
• Wireless and Powered Speakers
• Soundbars
• Subwoofers
• Bookshelf Stereo Systems
• Professional and Public Address (PA) Speakers

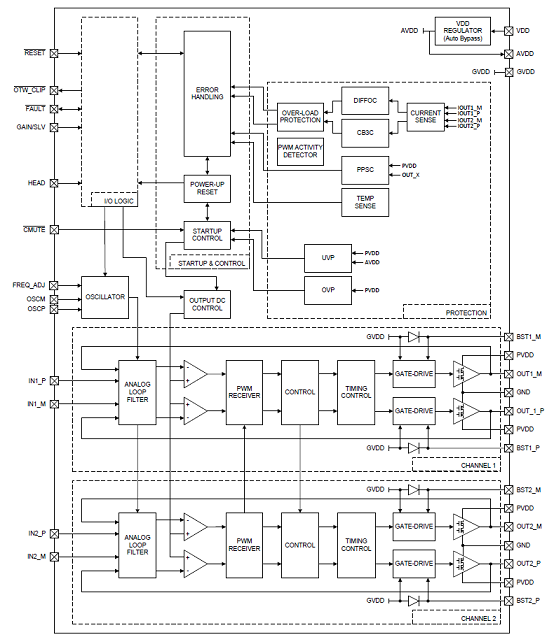

圖1.TPA3221功能框圖

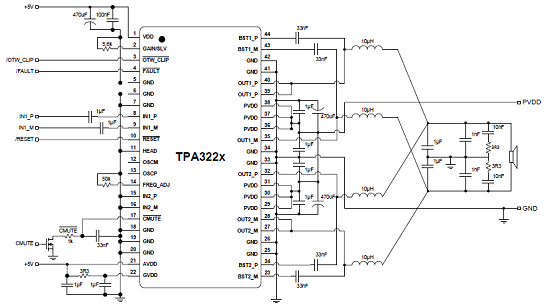

圖2.TPA3221簡化電路圖

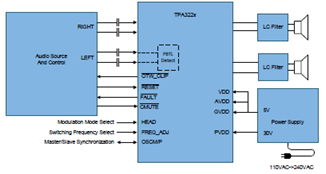

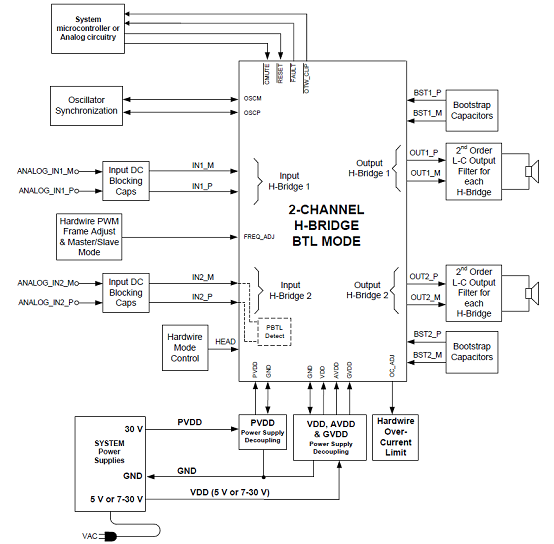

圖3.TPA3221系統框圖

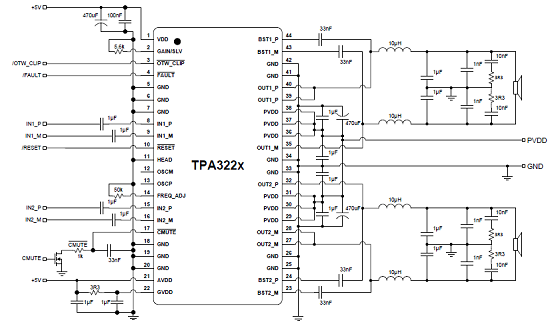

圖4.TPA3221差分(2N)AD模式BTL應用電路

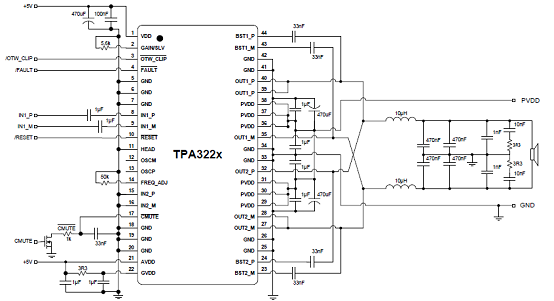

圖5.TPA3221差分(2N)AD模式PBTL應用電路(1)
圖6.TPA3221差分(2N)AD模式PBTL應用電路(2)
TPA3221評估模塊
This user ’s guide describes the characteristics, operation, and use of the TPA3221 evaluation module. A complete printed-circuit board (PCB) description, schematic diagram, and bill of materials are also included.

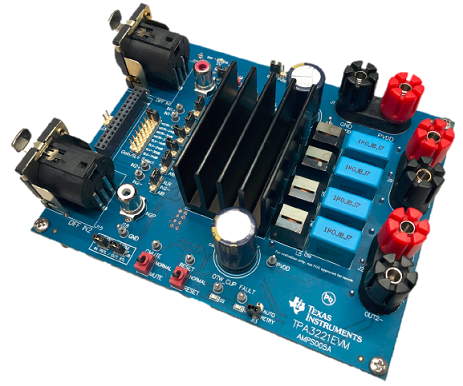

圖7.TPA3221評估模塊外形圖

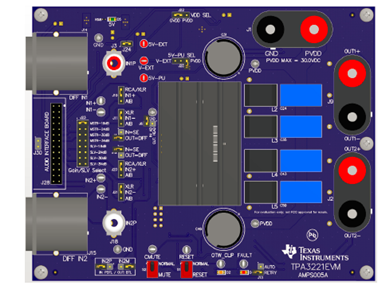

圖8.TPA3221評估模塊PCB外形圖(頂層)
圖9.TPA3221評估模塊PCB外形圖(底層)

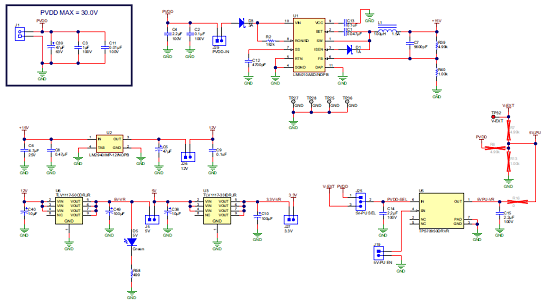

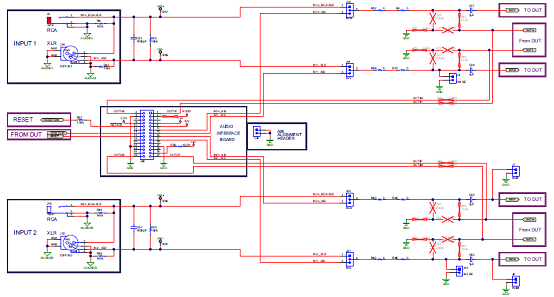

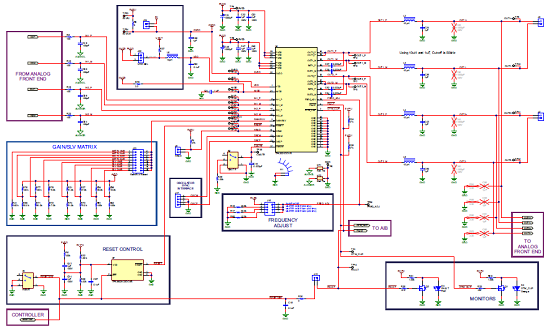

圖10.TPA3221評估模塊電路圖(1)
圖11.TPA3221評估模塊電路圖(2)
圖12.TPA3221評估模塊電路圖(3)

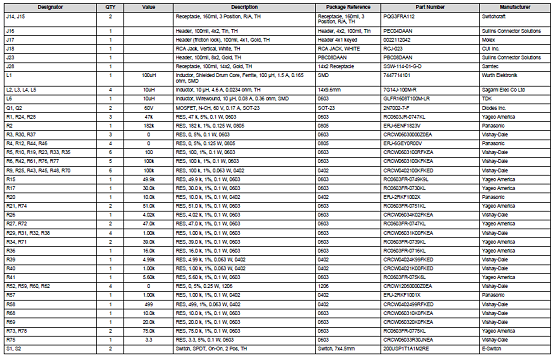

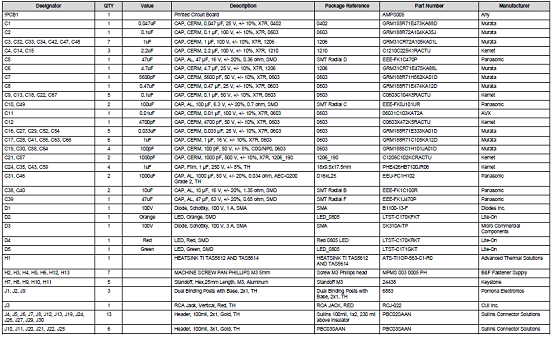

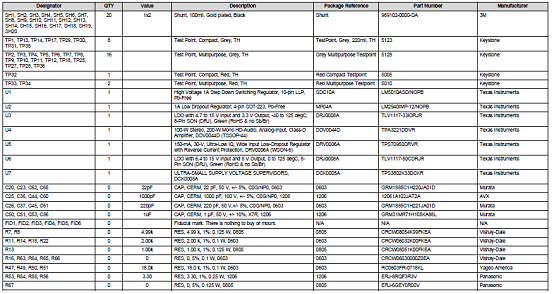

TPA3221評估模塊材料清單:

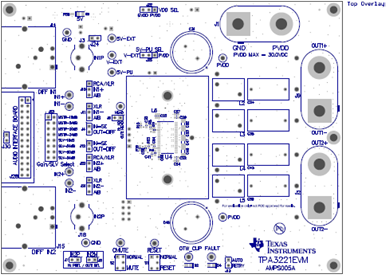

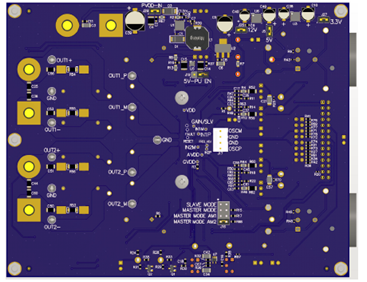

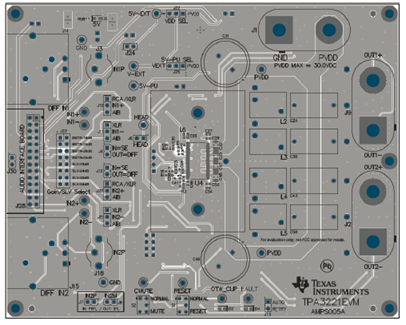

圖13.TPA3221評估模塊PCB頂層裝配圖

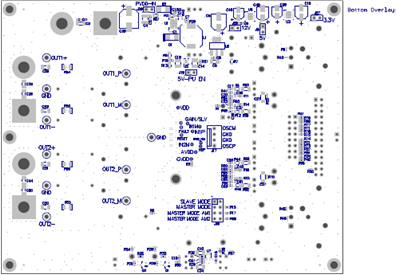

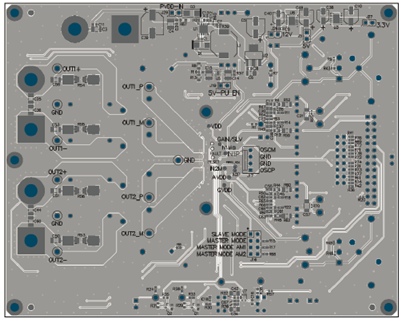

圖14.TPA3221評估模塊PCB底層裝配圖

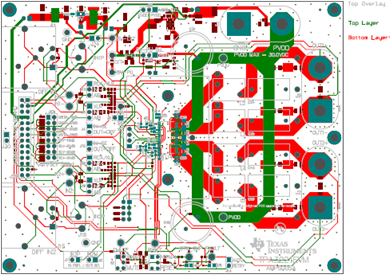

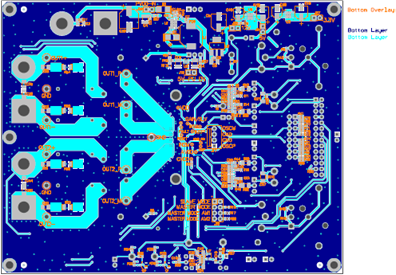

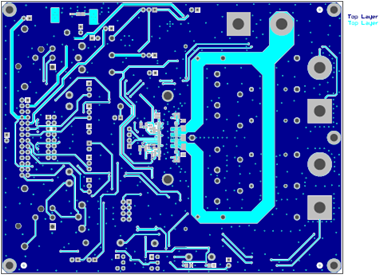

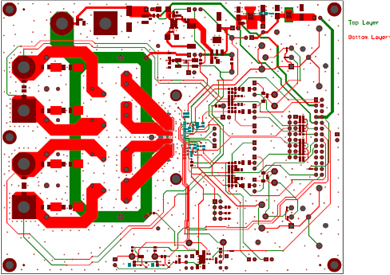

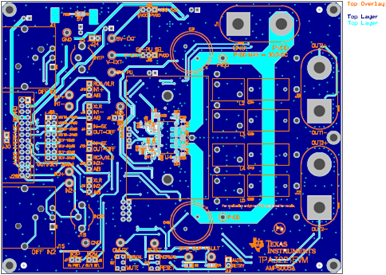

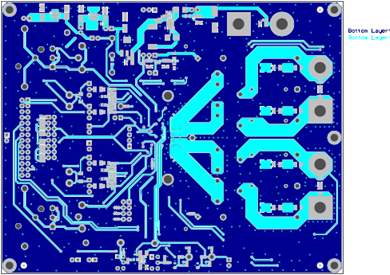

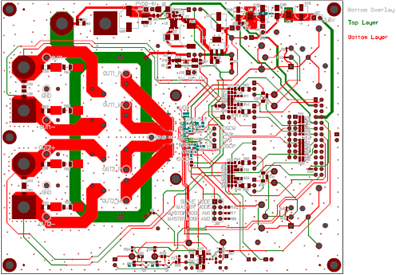

圖15.TPA3221評估模塊PCB設計圖(1)

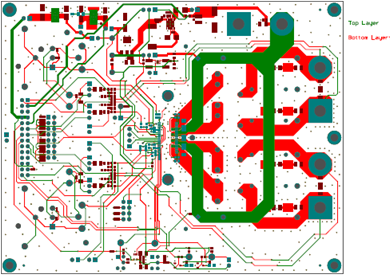

圖16.TPA3221評估模塊PCB設計圖(2)
圖17.TPA3221評估模塊PCB設計圖(3)
圖18.TPA3221評估模塊PCB設計圖(4)
圖19.TPA3221評估模塊PCB設計圖(5)
圖20.TPA3221評估模塊PCB設計圖(6)
圖21.TPA3221評估模塊PCB設計圖(7)
圖22.TPA3221評估模塊PCB設計圖(8)
圖23.TPA3221評估模塊PCB設計圖(9)
圖24.TPA3221評估模塊PCB設計圖(10) |
| |
|
|
|
|
|
| |
| |
| |
 |
